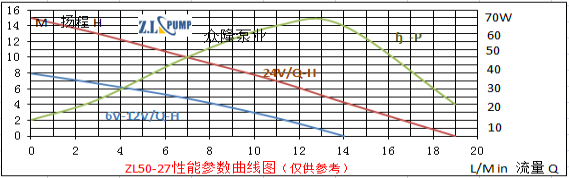

| Model | ZL50-27 | ||||||||
| Working Voltage Range | DC：6-24V | ||||||||
| Rating Power | 6V：20-30W / 12V：20-60W / 24V：50-160W | ||||||||
| Static Water Head | 5-15M | ||||||||
| Static flow rate | 10-30Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000hour | ||||||||
| Working Environment | PH value：PH5-10（Weak acid and weak base）、Submersible pump | ||||||||
| Max Noise | Continuous operation under normal working condition (water pump is 1m away from the tester)＜50dB | ||||||||
| Max Working Temperature | At room temperature, the temperature of the aqueous medium≤70℃ | ||||||||
| Application | High-rise water supply 、Garden watering, irrigation, etc | ||||||||
| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length （mm） | Width （mm） | Height （mm） | OD (inch) | ID （mm） | OD (inch) | ID （mm） | Inlet and outlet standard thread | ||
| 173 | 77 | 140 | IP68 | 1寸Standard threaded pipe | φ18.6 | 1寸Standard threaded pipe | φ18.6 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
