Model | ZL38-07 | ||||||||
Working Voltage Range | DC: 6V-24V | ||||||||
Rating Power | 6V: 0-17W / 12V: 0-17W / 24V: 0-23W | ||||||||

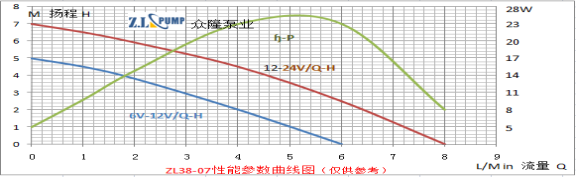

Static Water Head | 0-7 M | ||||||||
Static Flow Rate | 0-8 L/min | ||||||||
Lifespan | Continuous operation≤24hrs, under normal working surrounding >20000Hr | ||||||||
Working Environment | Liquid: From weak acid to weak base, workable both on land (Non-Submersible) | ||||||||
Max Noise | Under normal working status, 1M distance over test instrument <40dB | ||||||||
Max Working Temperature | Under normal surroundings, fluid medium temperature≤70℃ | ||||||||
Application | Solar water circulation system, Hot shower, Foot care, small fountain, Aquarium | ||||||||
Size | IP Grade | Inlet | Outlet | Remark | |||||
Length（mm） | Width（mm） | Height（mm） | OD（mm） | ID（mm） | OD（mm） | ID（mm） | Inlet and outlet with twist lock | ||
71.5 | 43 | 102 | IP67 | φ20 | φ12.4 | φ20 | φ5 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
